POWER Tec

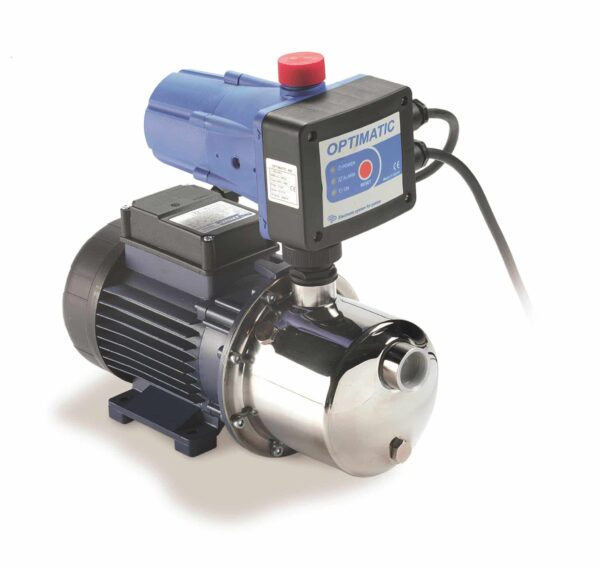

This pressurization electric system  is suitable for domestic application and small irrigation systems. It’s composed by MC 75-105 pump and “Optimatic” control system, that grants its high efficiency and keeps the pressure constant. This device is composed by a small diaphragm tank to avoid possible losses into the system. The “Dry-stop” device protect the pump from dry operation.

Categories: , .

DESCRIPTION:
This pressurization electric system  is suitable for domestic application and small irrigation systems. It’s composed by MC 75-105 pump and “Optimatic” control system, that grants its high efficiency and keeps the pressure constant. This device is composed by a small diaphragm tank to avoid possible losses into the system. The “Dry-stop” device protect the pump from dry operation.

CONSTRUCTION FEATURES:
Pump body: S. steel AISI 304
Motor bracket: Aluminium
Impeller: Noryl
Mechanical seals: Ceramics steatite / carbon graphite
Insulation class: F
Protection class: IPX4

Tipologia

surface
Tipo acqua

clean
Potenza

0,1 – 1,0 Hp, 1,1 – 2,0 Hp
Title Size
CATALOGO TEC 823 KB
Libretto Istruzioni Centrifughe Multistadio 2 MB
DRAWING + SPARES LIST POWERTEC 75 230V 50HZ 95 KB
DRAWING + SPARES LIST POWERTEC 105 230V 50HZ 99 KB
